Windows IIS ​

The Windows IIS Hook connects to the IIS server using the WinRM protocol.

Follow the following steps to enable the WinRM service and configure the Windows Firewall, so only CertGuardian can connect to the Windows IIS server.

Enable the WinRM service ​

Run the following the command in the IIS server:

powershell
winrm quickconfig

If it ask you for confirmation (Y/N), type Y and press enter. This will start the service and create the basic firewall exception.

Generate the a self signed certificate for the WinRM service.

If you want to access the IIS server with an IP, generate it with:

powershell
New-SelfSignedCertificate `
    -Subject "CN=your-server-ip.com" `
    -CertStoreLocation "Cert:\LocalMachine\My" `
    -NotAfter (Get-Date).AddYears(5)

If you want to access the IIS server with a name, generate it with:

powershell
New-SelfSignedCertificate `
    -DnsName "your-server-domain.com" `
    -CertStoreLocation "Cert:\LocalMachine\My" `
    -NotAfter (Get-Date).AddYears(5)

After generating the certificate write down the certificate thumbprint. You can also list the certificates with:

powershell
Get-ChildItem Cert:\LocalMachine\My |
    Where-Object {$_.HasPrivateKey} |
    Select Subject, Thumbprint, NotAfter |
    Sort-Object NotAfter

Start the WinRM service with:

powershell
winrm create winrm/config/Listener?Address=*+Transport=HTTPS "{Hostname=`"your-ip-or-domain.com`";CertificateThumbprint=`"your-certificate-thumbprint`"}"

This will start the service in the port 5986.

Important: That port must be accessible to the CertGuardian server over the Internet

Configure the Windows Firewall ​

To restrict access and only allow connection from the CertGuardian server, follow the following steps: Open the Windows Firewall pressing Windows + R and type wf.msc and press Enter: img_3.png

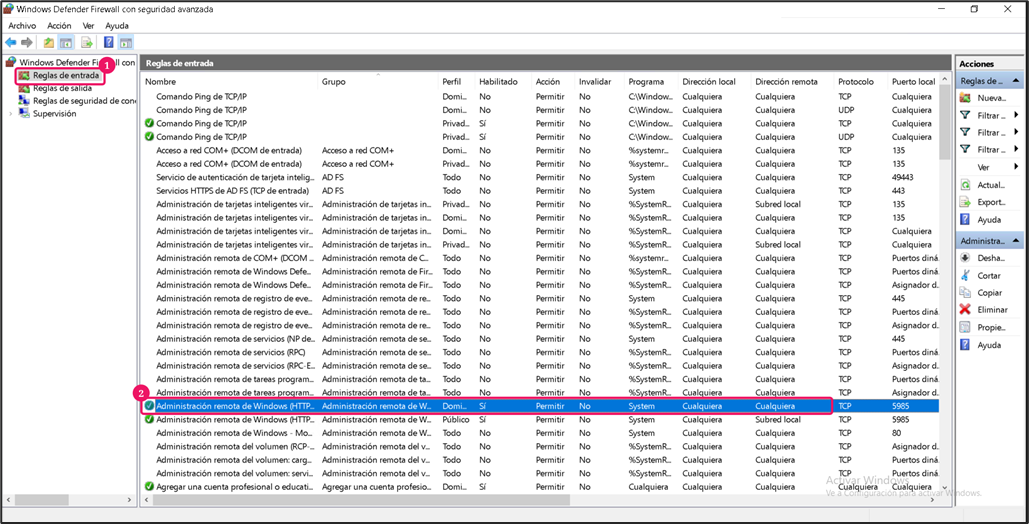

  • Click "Inbound rules" (1)

  • Find and edit the rule "Windows Remote Management (HTTP-In)" (2)img.png

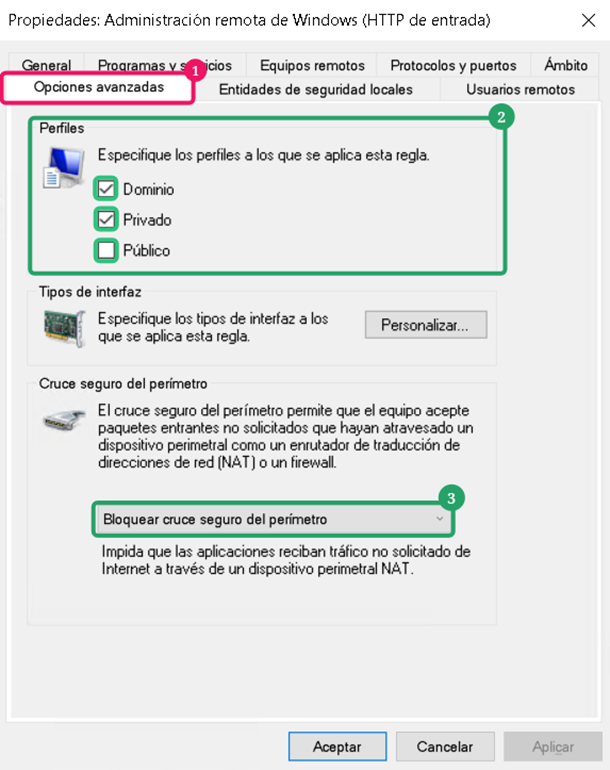

  • Go to "Advanced options" (1)

  • In the "Profiles" section check Domain, Private and Public (2),

  • In the Edge traversal section select Block edge traversal(3)img_1.png

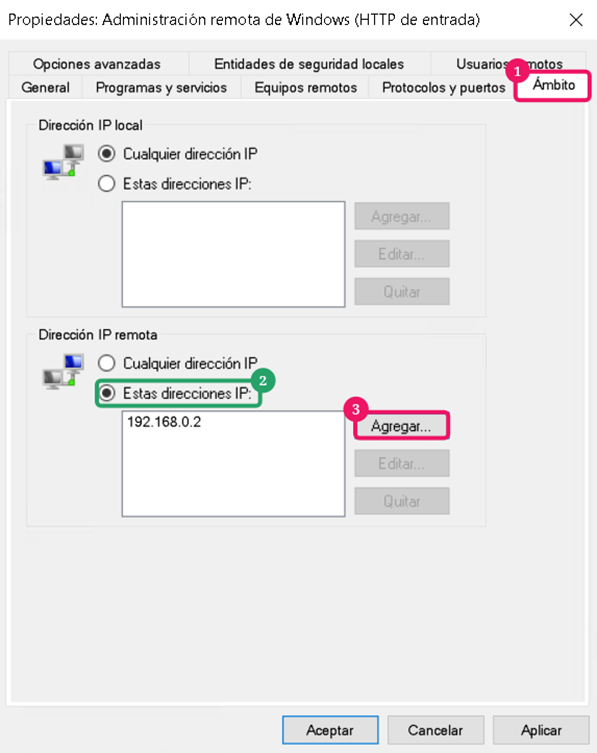

  • Go to the "Scope" tab (1).

  • In the "Remote IP address" select the option "These IP addresses" (2).

  • Click in "Add..." (3) and type the IP address of CertGuardian. img_2.png

Save changes: Press Apply to apply the new rules.
